Impressoras 3D de resina:SLA, DLP e LED-LCD

A impressão 3D de resinas curáveis ​​por luz tem ganhado terreno nos últimos anos para se tornar a segunda tecnologia de impressão 3D mais popular depois da FFF , tanto em ambientes profissionais quanto makers. Este boom foi o resultado de dois fatores importantes . Por um lado, o menor custo das impressoras 3D de resina devido ao surgimento de novas tecnologias colocou as impressoras de resina no mesmo segmento de preço que FFF. Por outro lado, o surgimentode novos materiais como resinas odontológicas, flexíveis e de engenharia tornou possível produzir peças de resina que antes eram viáveis ​​apenas usando FDM ou SLS.

A principal força da impressão 3D em resina, que tem atraído a atenção de alguns setores profissionais, como odontologia ou joalheria , é a alta resolução é capaz de atingir, variando de 50 µm a 150 µm em XY e de 30 µm a 200 µm em Z , que está abaixo da resolução mínima de uma impressora 3D FFF. Como resultado, as peças impressas em resina têm alta qualidade de superfície e alto nível de detalhes, dando a eles a maior qualidade estética de todas as tecnologias de manufatura aditiva.

Base para impressão em resina 3D

A impressão 3D em resina é baseada em um princípio completamente diferente daquele usado na maioria das tecnologias de impressão 3D, como FFF ou SLS. Enquanto nestas, um polímero termoplástico é usado como ponto de partida e aquecido até a temperatura de fusão para formar a peça, a impressão de resina é baseada na polimerização de uma mistura reativa de monômeros e oligômeros por aplicação seletiva de luz. Isso significa que, ao invés de usar o plástico como matéria-prima, na impressão em resina são utilizados os componentes básicos que compõem o plástico e o plástico é formado por reação química durante o processo de impressão.

As resinas para impressão 3D são compostas principalmente por três componentes:

Monômeros e oligômeros: Estas são pequenas moléculas que reagem entre si para formar polímeros longos cadeias, que são o componente fundamental do plástico. O comprimento dessas cadeias determinará em grande parte suas propriedades

Agente de ligação cruzada: Consiste em moléculas maiores ou menores com dois ou mais grupos reativos capaz de se ligar em vários pontos às cadeias poliméricas. Sua função é manter as correntes firmemente conectadas umas às outras. Em geral, os plásticos formados na presença de agentes de reticulação dão origem aos chamados plásticos ou resinas termoendurecíveis.

Fotoiniciador: Isso é responsável por promover a reação entre os monômeros ou destes com o agente de reticulação. These are organic molecules, generally dyes or fluorophores, capable of producing cations or free radicals in the presence of light at a given wavelength, thus initiating radical or cationic polymerisation reactions.

Light, generally blue (405 nm) or violet (365 nm - 385 nm), is used to activate the photoinitiators and make the resin solidify, as this is the most energetic band in the visible spectrum. To do this, only the areas that will be part of the piece are illuminated in each layer.

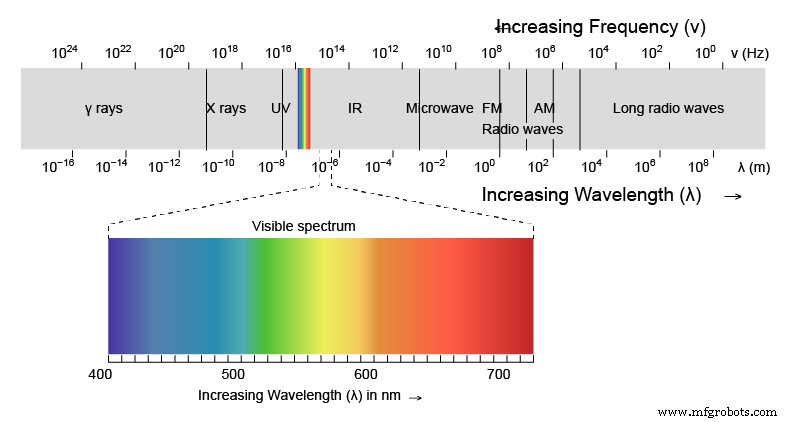

Image 1:Visible light spectrum. Source:Wikipedia.com

The 3D resin printing technologies are determined by the type of light source and the method of selective lighting used. Currently there are three common technologies:SLA, DLP and LED-LCD.

3D SLA printing

3D SLA or stereolithography printing is the oldest commercial 3D printing technology. It was developed during the first half of the 1980s and was patented in 1986 by 3D Systems founder Chuck Hull, just three years before Stratasys founder Scott Crump patented FDM technology.

In 3D SLA printing, the resin is cured using a laser beam between 150 and 300 µm in diameter. The laser sweeps the surface of each layer using a moving mirror system called a galvanometer. The main advantage of this technology is the high precision it can achieve , especially in the central area of the construction platform, which is only surpassed by SLS technology.

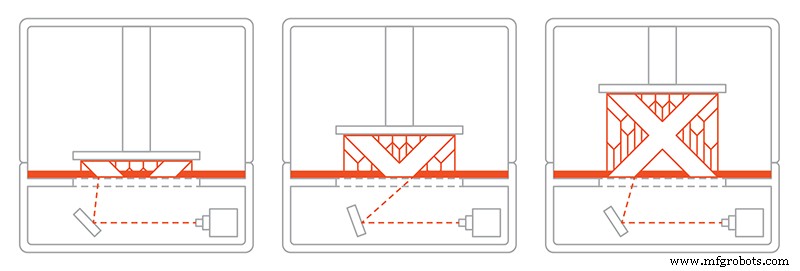

Image 2:SLA printing process. Source 3Dhubs.com

Another of its advantages, derived in part from this high precision, is that it achieves a superior surface finish to that obtained in DLP and LED-LCDs as it does not present the staircase effect that can be seen in the latter.

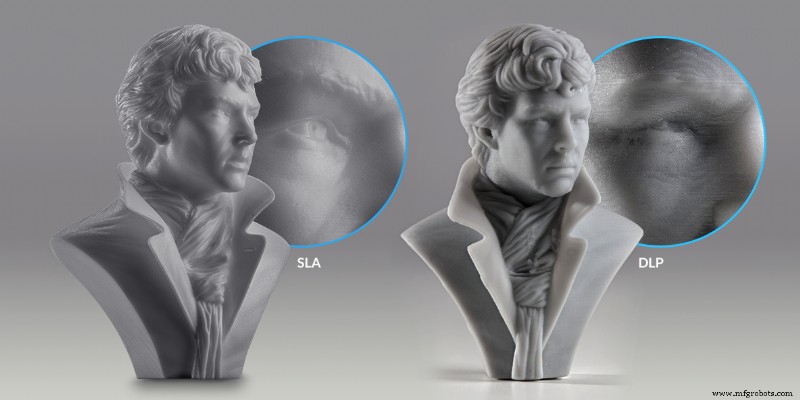

Image 3:Surface finish in 3D SLA and DLP printing. Source:Formlabs.com

However, not everything is an advantage, as this is the slowest resin printing technology. For each layer it is necessary to sweep the entire surface of the part with the laser, which is a slow process, which increases the more parts we position in the construction space. In addition, it is necessary to keep the sweeping speeds within a specific range, as very high speeds would result in a loss of precision, the main strength of this technology.

Video 1:How SLA printing works Source:Formlabs.com

This is the technology used by the renowned Formlabs printers , the benchmark brand for resin printing. Printers such as Form 3 or Form 3B use this technology in conjunction with high precision galvanometers to offer the highest quality standards in critical sectors such as high jewellery, dentistry or medicine.

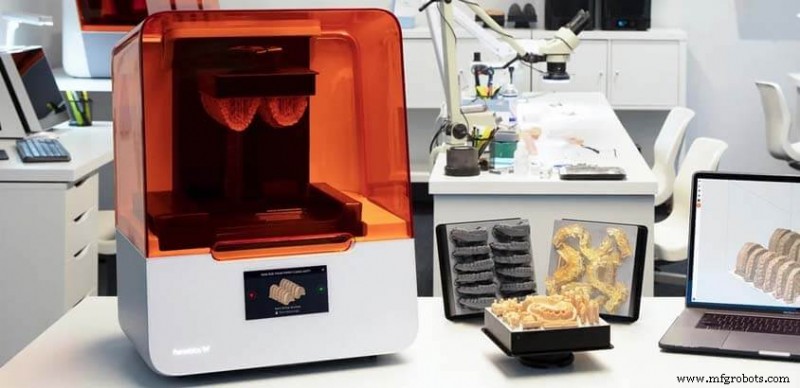

Image 4:Form 3B printer. Font:Formlabs.com

3D DLP printing

DLP 3D printing technology was developed with the aim of reducing 3D resin printing times . Instead of sweeping the surface of the part with a laser, the entire layer is projected simultaneously using a light source, a device consisting of a moving micro-mirror array known as a DMD (Digital Micromirror Device) and a set of lenses responsible for projecting the image onto the resin.

Video 2:How a DMD works. Source:TI.com

This technology was a revolution , since each layer is formed in a few seconds and the printing time is independent of the number of pieces placed on the base, only of the height of these.

Its main disadvantage is that the printing resolution is determined by the density of micro-mirrors that form the DMD and the projected surface. For the same DMD system, a larger printing surface will always result in a proportional decrease in resolution, which is not the case with SLA systems, where the resolution is determined by the diameter of the laser beam and is independent of the printing surface.

In addition, the use of projection lenses can cause distortions in areas far from the centre , which are greater the larger the construction size. It is possible to correct these distortions by using more complex optical systems, however, they often make the device very expensive and therefore not very popular.

The surface quality of the pieces is usually slightly lower than those produced by SLA, and in many cases the staircase effect appears.

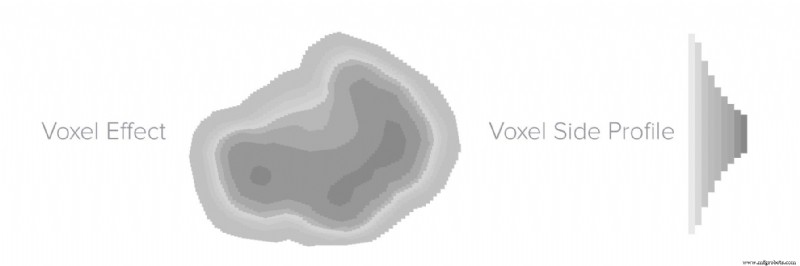

Image 5:Staircase effect derived from the use of square voxels in DLP Source:theorthocosmos.com

Although printing times were critically shortened, this technology did not displace SLA technology. Today, it is a technology that has fallen into disuse, displaced mainly by the appearance of LED-LCD technology.

3D LED-LCD or MSLA printing

It is the latest technology to reach the market and has experienced significant growth in recent years. It was developed as an evolution of DLP technology , and today has virtually replaced it.

Operation is similar to DLP technology, however, instead of reflecting light using a digital micromirror device (DMD), it uses an LCD device in which each pixel acts as a small window that blocks or lets light through.

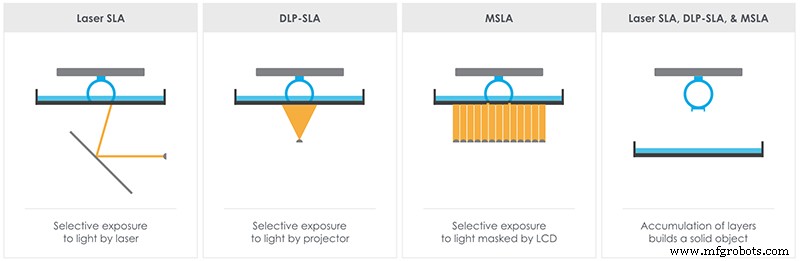

Image 6:SLA vs DLP vs MSLA. Source:theorthocosmos.com

LCD devices are the same as those used in mobile screens or TV or computer panels, so the cost is much lower than that of DMD devices. In addition, they are available in sizes from 3" to 80", so the projection is direct and perpendicular to the base over the entire surface. This avoids the use of expensive and complex projection lens systems and the distortions they cause in DLP produced parts.

Among its main advantages are its high printing speed and low cost . In addition, it outperforms DLP technology in two key ways. As noted above, perpendicular projection prevents distortion from the oblique projection provided by lenses in DLP systems. Secondly, LCD devices not only block or allow light to pass through, but can also filter it by varying the light intensity independently at each pixel. This makes it possible to use anti-aliasing processes that reduce the staircase effect and allow for surface qualities very close to those obtained by SLA

.

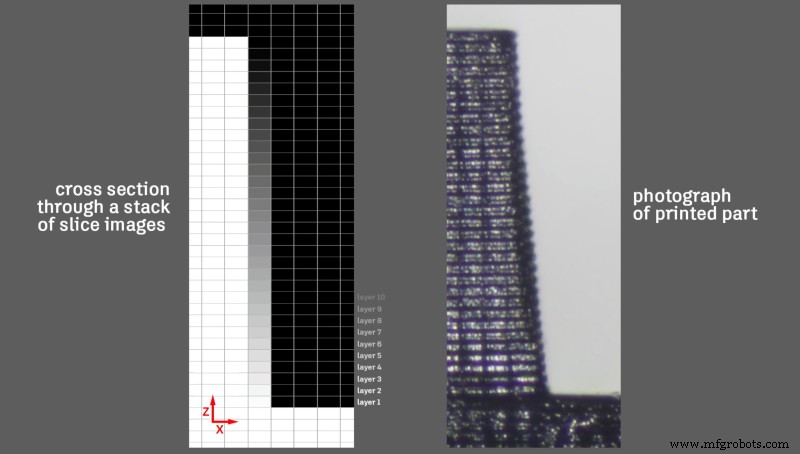

Image 7:Sub-pixel or anti-aliasing sampling to avoid staircase effect Source:hackaday.com


All of this has meant that its growth in recent years has not only displaced DLP technology but is beginning to replace SLA technology in industries such as dentistry, where SLA technology is a standard.

One of the main drawbacks is the high level of heating produced by the LED matrixes used , which means that effective cooling systems must be implemented to prevent the resin from heating up in long prints.



Image 8:Liquid cooling system of a Uniz printer. Source:Uniz.com

It is the technology present in all low-cost resin 3D printers and also the latest professional models such as the Uniz Slash.

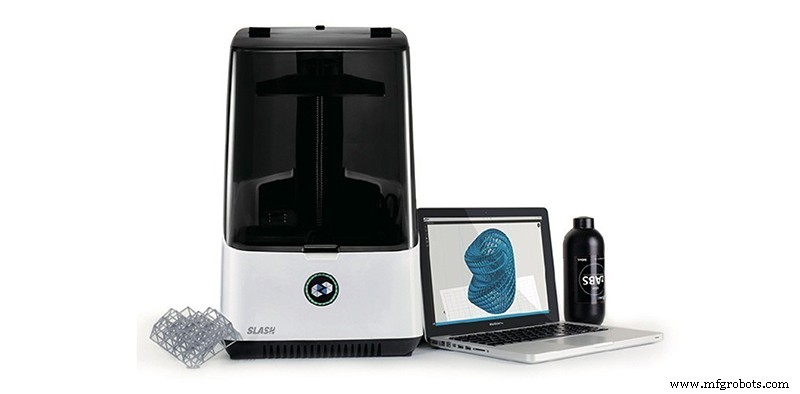

Image 9:Uniz Slash Plus printer. Source:Uniz.com

Which technology to choose

Today the dilemma could be reduced to two technologies:SLA or LED-LCD.

Despite the growth of LED-LCD technology, SLA technology is still the majority in professional environments. There are two reasons for this, firstly the high quality and accuracy achieved by SLA with printers such as Formlabs is difficult to match. On the other hand, new technologies need a transition period to make room in companies due to the need to amortise current equipment and the distrust of new systems with low implementation in their sector.

However, the new professional LED-LCD printers, such as the Uniz, can provide an important competitive advantage by allowing small series to be produced with a quality similar to SLA and in a fraction of the time. For example, in the production of models for lost-wax moulding, which is widely used in some branches of the jewellery industry and which can lead to significant savings, not only in time and resources, but also in costs.

The decision between one or the other must be based on the user's needs between precision and production capacity. In many cases they should be thought of not as rival technologies, but as complementary, having a team dedicated to the production of small series and another for more delicate and precise works.
